Turbocharger Intake Steel Pipe
Впускная Труба Турбины
Tubo de Admisión del Turbo

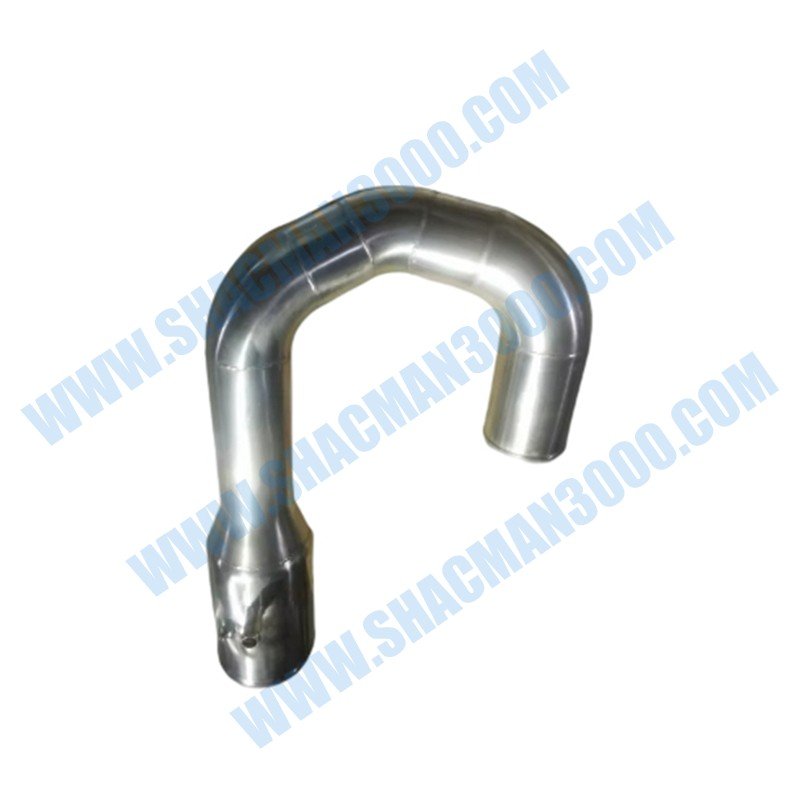

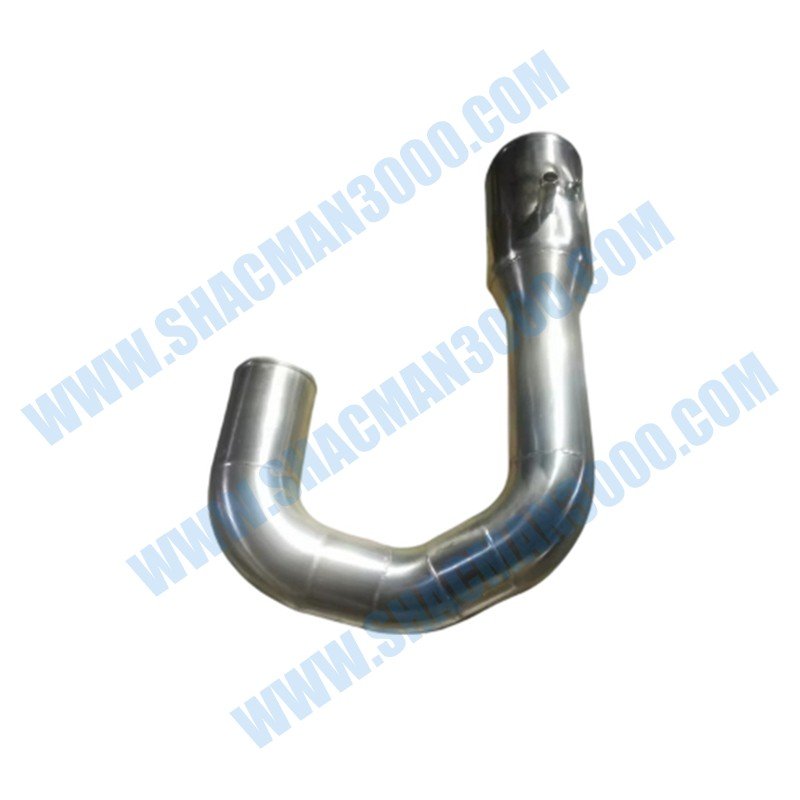

OEM Turbocharger Intake Steel Pipe DZ97259198013 precision‑engineered for the Shacman X5000 diesel engine. This robust DZ97259198013 induction component delivers compressed air from the turbocharger to the intake manifold with maximum efficiency.
Fabricated from mandrel‑bent steel with high‑temperature resistant coating, the Turbocharger Intake Steel Pipe DZ97259198013 withstands boost pressures and thermal cycling while maintaining smooth internal airflow characteristics.
Replacing a cracked or leaking intake pipe with the genuine DZ97259198013 component restores proper boost pressure and prevents the power loss caused by induction system leaks.
| Parameter | Specification |
|---|---|
| OEM Part Number | DZ97259198013 |
| Product Name | Turbocharger Intake Steel Pipe |
| Brand / Model | Shacman X5000 |
| Material | Mandrel‑Bent Steel with High‑Temperature Coating |
| Pipe Outer Diameter | 60.00 mm |
| Wall Thickness | 1.50 mm |
| Overall Length | Approximately 420.00 mm |
| Connection Type | Silicone couplers with hose clamps at both ends |
| Maximum Boost Pressure | 3.5 bar |
| Application | Shacman X5000 turbocharger to intercooler intake tract |
The DZ97259198013 turbocharger intake steel pipe forms a vital link in the Shacman X5000 induction system. It carries compressed, heated air from the turbocharger compressor outlet toward the intercooler for density recovery.
Any leak in this pressurized section allows hard‑earned boost pressure to escape to the atmosphere. This reduces the mass of air delivered to the cylinders, causing incomplete fuel combustion and significant power loss.
The Turbocharger Intake Steel Pipe DZ97259198013 must also withstand the high temperatures generated during turbocharger operation, which can exceed 200 degrees Celsius under sustained heavy load conditions.
The DZ97259198013 pipe is formed using a mandrel bending process that maintains a constant internal diameter throughout the curve. This eliminates the flow‑restricting wrinkles found in crush‑bent tubing.
The high‑temperature coating applied to the exterior resists the discoloration and corrosion that would otherwise occur from continuous exposure to turbocharger‑radiated heat and under‑hood environmental conditions.
The DZ97259198013 pipe connects using reinforced silicone couplers and constant‑tension hose clamps. The couplers must be fully seated on the pipe ends before the clamps are tightened to the specified torque.
After installation, the entire induction system should be pressurized and checked for leaks using a boost leak tester. Even small leaks that are not audible can cause measurable performance degradation.
Each production batch of DZ97259198013 pipes undergoes pressure testing at 1.5 times the maximum rated boost to verify structural integrity. The pipe must hold pressure without deformation or leakage.
Thermal cycling tests subject sample pipes to repeated heating and cooling cycles while pressurized. This simulates the real‑world conditions experienced during vehicle operation and validates long‑term durability.
A cracked or split DZ97259198013 pipe often produces a loud whistling or hissing sound under boost conditions. This noise changes in pitch and intensity as turbocharger boost pressure varies with engine load.
Black smoke from the exhaust under acceleration indicates that the engine is receiving less air than the fuel system expects, a classic symptom of an induction leak downstream of the airflow sensor.
Oil residue around the pipe connections may indicate that the turbocharger compressor seal is leaking. The Turbocharger Intake Steel Pipe DZ97259198013 should be cleaned and inspected whenever oil is present in the intake tract.
The DZ97259198013 pipe is specifically configured for the Shacman X5000 turbocharger and intercooler layout. Its bend geometry and connection diameters match the factory induction system components.
Fleet operators should inspect these pipes during routine engine services and replace any showing signs of fatigue or connection deterioration. Proactive replacement prevents roadside breakdowns.
Aftermarket intake pipes with thinner walls or inferior coatings can rupture under boost pressure. We supply only the authentic Shacman X5000 Turbocharger Intake Steel Pipe DZ97259198013 built to OEM standards.
Each pipe is individually packaged with protective end covers to prevent damage during transit. The part number DZ97259198013 is clearly displayed on both the component and its packaging label.
Our global distribution network ensures that genuine DZ97259198013 intake pipes are available for immediate dispatch to workshops and fleet maintenance facilities across all major continents.
Complete turbocharger intake steel pipe with protective coating. Connection couplers and clamps available separately for complete installation.
Expert guidance on intake pipe installation and boost leak testing. We help ensure your DZ97259198013 pipe delivers maximum induction system performance.
For current stock availability and pricing on the genuine Turbocharger Intake Steel Pipe DZ97259198013, please use the contact buttons above.
