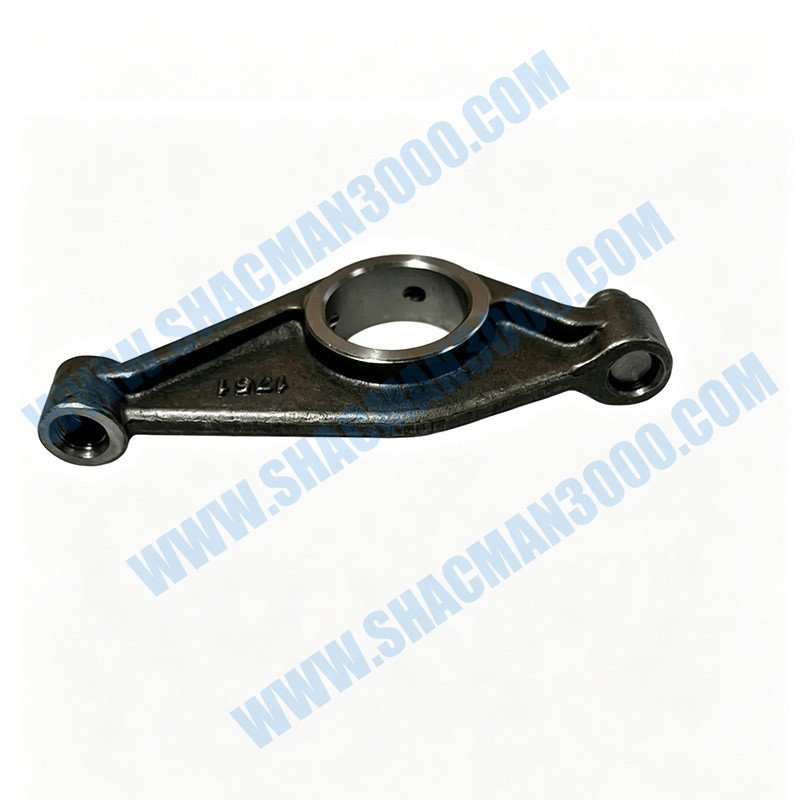

Brake Rocker Arm Assembly

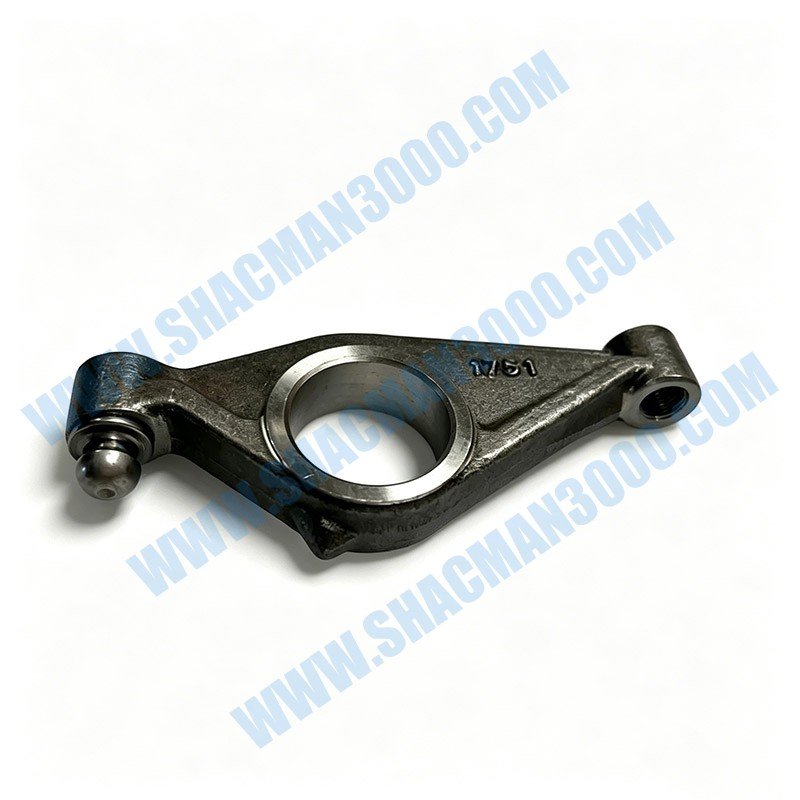

Коромысло тормозного механизма
Balancín de freno
The OEM Brake Rocker Arm Assembly 1003864836 is a precision-engineered brake actuation component manufactured exclusively for the Shacman X5000 heavy-duty truck platform. This critical mechanism converts the linear force from the brake chamber pushrod into rotational motion, effectively applying the foundation brakes with the precise mechanical advantage required for safe and controlled vehicle deceleration under all load conditions.
Fabricated from high-strength forged alloy steel with induction-hardened pivot points and bushing surfaces, the brake rocker arm assembly delivers exceptional structural rigidity and wear resistance. The 1003864836 part features precision-machined splines and bearing journals that ensure smooth, consistent brake application and release cycles throughout the component’s extended service life.
Installing genuine OEM brake rocker arm assemblies preserves the designed brake system geometry and ensures compliance with vehicle safety standards. The 1003864836 identifier guarantees complete traceability to Shacman’s rigorous material certification and dimensional inspection protocols for safety-critical brake system components.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | 1003864836 | Unique Shacman X5000 identifier |
| Product Name | Brake Rocker Arm Assembly | Complete brake actuation lever mechanism |
| Brand / Vehicle Model | Shacman X5000 | Heavy-duty truck series |
| Body Material | Forged Alloy Steel | High structural strength and fatigue resistance |
| Pivot Surface Treatment | Induction hardened | Extended bushing and bearing life |
| Spline Type | Involute spline (OEM specified) | Secure connection to brake camshaft |
| Surface Finish | Phosphate or e-coat | Corrosion protection for under-chassis environment |
| Bushing Type | Bronze or composite bushing | Self-lubricating for maintenance-free operation |
| Application | Foundation brake system | Connects brake chamber to camshaft |
| Packaging | Protective oiled wrapping | Shacman genuine labeled box |
The rocker arm efficiently converts the linear push from the brake chamber into rotational torque on the brake camshaft. This mechanical transformation is fundamental to the operation of the entire foundation brake system.
The 1003864836 arm’s specific lever length is engineered to provide the optimal multiplication of brake chamber force. This ensures powerful yet controllable brake application without excessive chamber stroke or air consumption.
The precision bushing surfaces ensure the arm returns smoothly to its rest position when air pressure is released from the brake chamber. This prevents brake drag, uneven lining wear, and excessive fuel consumption caused by residual braking.
The brake rocker arm assembly 1003864836 is installed on the splined end of the brake camshaft, which protrudes from the brake spider on each wheel end of the Shacman X5000. The arm is positioned so that its clevis pin hole aligns perfectly with the brake chamber pushrod clevis. The splined connection must be clean and free of corrosion before installation. The arm is slid onto the camshaft splines and secured with the retaining bolt and lock washer, which must be torqued to the exact factory specification. After installation, the brake chamber pushrod is attached to the arm using the hardened clevis pin and cotter pin. The slack adjuster mechanism, if integrated, must be set to provide the correct running clearance between the brake linings and the drum. The entire assembly should be checked for freedom of movement through its full stroke before the wheel is reinstalled.
Each brake rocker arm assembly produced under OEM number 1003864836 begins as a certified alloy steel forging. The forging process aligns the internal grain structure to follow the contours of the arm, maximizing its resistance to bending and fatigue cracking under the cyclical loading of brake applications. The forged blank is then precision-machined to create the pivot bores, splined hub, and clevis pin attachment features with exact dimensional accuracy.
The critical wear surfaces, including the clevis pin bore and the internal splines, undergo induction hardening to achieve a deep, wear-resistant case while maintaining a tough, ductile core. The pivot bushings are then pressed into place and finish-bored to ensure perfect alignment. The completed assembly receives a phosphate or e-coat surface treatment for long-term corrosion protection in the harsh under-vehicle environment. Each arm is dimensionally inspected, and the spline fit is verified using a go/no-go gauge. The part is then individually packaged in a Shacman branded box marked with the 1003864836 part number.
Brake rocker arms should be inspected at every brake lining replacement interval or whenever the wheel end is disassembled for service. Technicians must check the arm for any visible cracks, particularly around the splined hub area and the clevis pin attachment point. The clevis pin bore should be checked for elongation using a pin gauge. Any measurable elongation indicates that the arm must be replaced immediately to prevent loss of brake stroke and potential brake failure.
The pivot bushings should be inspected for excessive radial play. Grasping the arm and attempting to move it laterally on its shaft will reveal any looseness. A worn bushing allows the arm to move out of plane, causing uneven brake shoe contact and accelerated lining wear. If the arm shows any signs of cracking, elongated holes, or loose bushings, it must be replaced with a new 1003864836 assembly. Never attempt to weld or straighten a damaged brake component, as this compromises its structural integrity and can lead to sudden failure during a brake application.
Sourcing the authentic brake rocker arm assembly for your Shacman X5000 is a straightforward process that prioritizes vehicle safety. Use the inquiry button above to check current stock levels and receive a competitive quotation. We maintain dedicated inventory of these safety-critical components to support urgent brake system repairs and scheduled fleet maintenance programs across all international regions.
To ensure you receive the exact factory-specified component with full safety compliance, always reference the OEM part number 1003864836 in your purchase order. Our logistics team provides complete export documentation and certificates of conformance with every international shipment for efficient customs clearance.
Safety-Critical Stock Available
Immediate dispatch for Shacman X5000 brake system service.
Choosing the genuine Brake Rocker Arm Assembly 1003864836 is a decision that directly impacts the fundamental safety and braking performance of your Shacman X5000 vehicle. Aftermarket brake arms that are manufactured from lower-grade steel or with imprecise spline tolerances can crack under the high cyclical loads experienced during emergency braking maneuvers. A failed brake arm results in complete loss of braking on that wheel, dramatically increasing stopping distances and creating a severe vehicle control hazard.
The OEM brake rocker arm’s specific geometry, material specification, and heat treatment process were validated through extensive vehicle testing, including repeated full-pressure emergency stops at maximum gross vehicle weight. Shacman engineers designed this component with a substantial safety margin to ensure reliable performance even under the most extreme braking scenarios encountered in heavy-duty truck operations. The 1003864836 assembly provides the predictable, consistent brake actuation that professional drivers depend on for safe vehicle control.
Fleet safety managers and professional technicians worldwide insist on the 1003864836 brake rocker arm assembly because it consistently delivers the uncompromising reliability that heavy-duty commercial transport demands. This component is a vital link in the chain of safety that protects the driver, the cargo, and other road users. Trust only the brake rocker arm that Shacman engineered and certified for the rigorous safety standards of the X5000 heavy truck platform.
The brake rocker arm assembly 1003864836 operates in one of the most hostile environments on the vehicle. It is constantly exposed to road spray, dirt, salt, and extreme temperature fluctuations. The protective surface coating is designed to resist this corrosion for the life of the component, but regular visual inspection is still essential. Any arm that shows significant rust pitting, particularly in high-stress areas, should be evaluated for replacement to maintain the designed safety margin.
Proper lubrication of the pivot points during routine chassis service is essential for maximizing the service life of the rocker arm bushings and the camshaft splines. Use only the grease type specified by Shacman, and apply it until fresh grease is visible purging from the bushing seals. Over-greasing can damage seals, while under-greasing leads to accelerated wear. Following the recommended lubrication intervals in the vehicle service manual ensures the brake rocker arm continues to operate smoothly and predictably throughout its service life.
For our international customers, we take exceptional care in packaging the 1003864836 brake rocker arm assemblies. Each arm is individually wrapped in VCI protective material and packed in sturdy, compartmented export cartons designed to prevent any impact damage during global transit. Partner with our global supply network to keep your Shacman X5000 fleet’s brake systems operating at the highest level of safety and reliability that modern heavy-duty transport operations demand.
