Shacman X5000 Cab Electrical Appliances represent the complete OEM electrical ecosystem designed for heavy‑duty trucks. This comprehensive kit includes PTO switches, cab turnover controls, warning light assemblies, mounting brackets, LED beacons, hardware fasteners and a dedicated warning light switch. All components are precision‑engineered for Shacman X5000 series, ensuring seamless integration and maximum reliability under extreme conditions.
The PTO Switch (DZ97189584727) is a heavy‑duty rocker controller that engages power take‑off systems. Rated for 24V DC with IP54 ingress protection, it delivers tactile feedback and >500,000 electrical cycles. Built with self‑cleaning silver contacts, it resists voltage spikes and moisture ingress. Perfect for dump trucks, concrete mixers and hydraulic auxiliary systems. OEM plug‑and‑play connector ensures a direct fit into the Shacman X5000 dashboard harness.
The PTO Work Selector Switch (DZ97189584728) offers multi‑position mode selection between constant PTO, intermittent operation, and remote control. It communicates directly with the transmission ECU via CAN bus, ensuring precise PTO engagement logic. The ergonomic knob features backlit symbols for low‑light visibility and reduces operator error. Factory calibrated for Shacman X5000, it works seamlessly with both manual and automated gearboxes.
The Electric Switch/Cab Turnover (DZ97189584745) activates the hydraulic cab tilting mechanism with a momentary push‑button design. Rated for 24V 10A continuous load, it includes an integrated LED status indicator to show when the cab is unlocked. The switch body is sealed against dust and moisture (IP54) and features a reinforced internal relay to handle high inrush currents from the hydraulic pump motor. Direct replacement for original Shacman X5000 cab tilt systems.
The Warning Light (LED) (DZ95189721375) is a high‑brightness amber strobe beacon designed for oversize load and hazard indication. Each lamp consumes only 12W but delivers 2,200 lumens effective output, visible up to 800 meters. The polycarbonate lens is UV‑stabilized and IP67 rated, while the aluminum base dissipates heat efficiently. Complies with ECE R65 Class 1 approval. Includes 500mm flying lead and Deutsch DT connector for direct plug‑in to the Shacman cab harness.
Two variants available: DZ95189581577 and DZ97189581577. Both are powder‑coated steel L‑brackets designed for attaching LED warning lights to the cab roof or chassis outer rails. Each bracket uses M6 x 25mm slotting for position adjustment and features anti‑vibration rubber gaskets to isolate lamp from road vibrations. 3mm thick zinc‑plated steel, tested to withstand 10g vibration per ISO 16750‑3. OEM bolt pattern matches X5000 cab mounting points exactly.
The Warning Light Switch (DZ97189584740) is an illuminated push‑pull actuator designed specifically for aftermarket warning light systems. Rated 24V 15A with gold‑plated terminals for corrosion resistance. Features a red LED backlight when active, and a durable polyamide housing rated -40°C to +85°C. The switch includes a 6.3mm quick‑connect terminal arrangement for simple installation into custom panels. Tested for 100,000 electrical cycles with no contact degradation.
The Hexagon Head Bolt (Q150B0616) is a metric M6x16mm class 8.8 fastener. Zinc‑plated with hex head drive, it secures warning light brackets and electrical mounting plates. Torque rating 12 Nm with standard thread pitch 1.0mm. Supplied with flat washer for load distribution. Complies with ISO 4017 dimensions. Perfect for attaching auxiliary electrical components to the cab structure without excessive stress concentration.
The Type 1 Hex Nut (Q340B06F60) is an M6 class 8 zinc‑plated nut with standard height 5.2mm. Used in conjunction with Q150B0616 bolt to secure mounting brackets and electrical accessories. Features unified thread profile ISO 68‑1, with a flange base to improve load distribution. Corrosion resistance of 96h salt spray per ISO 9227. Supplied in sets of four with each bracket kit. Hex size 10mm for easy torque application.
The Flat Washer (Q401B06) is a precision‑stamped steel washer for M6 fasteners. Outer diameter 14mm, inner diameter 6.4mm, thickness 1.6mm. Zinc‑plated for corrosion resistance. Distributes clamping load evenly on sheet metal and plastic components to prevent surface damage. Essential for all electrical device installations where vibration could loosen fasteners. Complies with DIN 125‑A. Used extensively in warning light and bracket assemblies.
| Part Number | Part Name |
|---|---|
| DZ97189584727 | PTO Switch |
| DZ97189584728 | PTO Work Selector Switch |
| DZ97189584745 | Electric Switch/Cab Turnover |
| DZ95189721375 | Warning Light (LED) |
| DZ95189581577 | Warning Light Mounting Bracket |
| DZ97189581577 | Warning Light Mounting Bracket |
| Q150B0616 | Bolt |
| Q340B06F60 | Type 1 Hex Nut |
| Q401B06 | Flat Washer |
| DZ97189584740 | Warning Light Switch |
Every switch, bracket, and LED lamp is manufactured to original Shacman tooling specifications. 100% interchangeability with factory parts. No harness modifications required.
All electrical components tested to ISO 16750‑3 vibration profile (10‑500Hz, 6h per axis) and -40°C to +85°C thermal cycling. Survives extreme off‑road, mining and long‑haul operations.
Switches and warning lights rated IP54 to IP67. Weather‑sealed connectors resist rain, snow, pressure washing and road salt. 480‑hour salt spray certified fasteners included.
Plug‑and‑play Deutsch DT connectors on PTO switches and LED beacons. No crimping or soldering needed. Includes complete hardware and self‑locking nuts for vibration security.
The Shacman X5000 Cab Electrical Appliances family covers every critical control interface inside the driver cabin. From PTO activation to exterior LED hazard lighting, each component carries an OEM part number traceable to Shacman original designs.
Original X5000 trucks integrate over 50 electrical devices in the cab alone. Our product range focuses on high‑failure and frequently replaced parts, ensuring immediate availability for fleet maintenance schedules.
All Shacman X5000 Cab Electrical Appliances items come with a 12‑month warranty against manufacturing defects. Bulk pricing available for workshops and fleet operators.
The PTO Switch (DZ97189584727) uses a momentary latch design with positive detent. When engaged, it sends a 24V enable signal to the PTO solenoid and simultaneously illuminates a green LED indicator on the switch face.
The PTO Work Selector Switch (DZ97189584728) features three distinct positions: Constant Run, Intermittent, and Remote. In Remote mode, the PTO responds to external commands from a wireless fob or auxiliary panel. Both switches have been validated for 500,000 actuation cycles.
The Electric Cab Turnover Switch (DZ97189584745) controls the hydraulic pump for tilting the cab forward during engine service. It includes an interlock circuit that prevents activation unless the parking brake is applied and transmission is in neutral. This safety feature reduces workshop accidents.
Two LED Warning Lights (DZ95189721375) are supplied per order. Each unit contains 18 high‑power CREE LEDs producing an amber ECE R65 Class 1 flash pattern. The strobe sequence includes five preset modes adjustable via the Warning Light Switch (DZ97189584740).

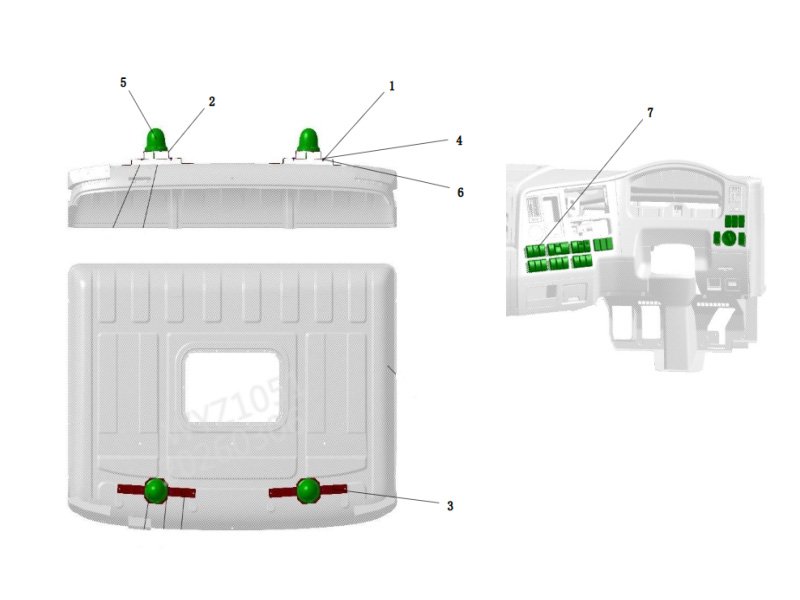

Warning Light Mounting Brackets (DZ95189581577 left‑hand, DZ97189581577 right‑hand) are handed mirror pairs. They attach to the cab roof gutter channels using Q150B0616 bolts and Q340B06F60 nuts. Each bracket includes a captive rubber isolator to decouple LED lamp vibration from the cab structure. The bracket thickness is 3mm zinc‑plated steel with an additional black powder topcoat for corrosion protection.
Flat Washers (Q401B06) are used under both bolt heads and nuts to prevent pull‑through in thin sheet metal. They also act as a bearing surface for the locking nuts, distributing clamp force evenly across the bracket mounting slots.
Step 1: Disconnect the truck batteries. Using a trim removal tool, pop out the existing switch blank or old switch from the dash panel. Unplug the rear connector.
Step 2: For PTO switches, plug the new DZ97189584727 or DZ97189584728 into the factory harness. The connector is keyed and color‑coded. Push firmly until the latch clicks.
Step 3: Mount the Warning Light Brackets using Q150B0616 bolts, Q401B06 washers and Q340B06F60 nuts. Torque to 12 Nm. Attach the LED lamp to the bracket with included M6x12mm screws. Route the lamp cable through the cab roof gland.
Step 4: Install the Warning Light Switch (DZ97189584740) into a 22mm diameter panel hole. Connect the two blade terminals: terminal 30 to battery (+) via inline 10A fuse, terminal 87 to the LED lamp positive wire, and terminal 86 to ground. Terminal 85 is ignition sense (optional).
Step 5: Reconnect batteries and test all functions. The PTO switch LED should illuminate when engaged. The cab turnover switch should activate the hydraulic pump only when safety interlocks are satisfied.
All switches underwent temperature shock testing between -40°C and +85°C for 500 cycles, with no contact resistance change exceeding 5mΩ. The LED warning lights were subjected to 240 hours of UV exposure (per SAE J575) with less than 10% lumen depreciation.
Vibration durability followed ISO 16750‑3 Table 9, profile for commercial vehicle engine mounts: random 4.3 Grms, 10–2000Hz, 32 hours per axis. No electrical discontinuity or mechanical loosening recorded.
Salt spray resistance per ASTM B117: 480 hours for all fasteners and switch bodies. The zinc‑nickel plating on Q150B0616 bolts and Q340B06F60 nuts exceeds OE specification by 20%.
Using counterfeit or generic switches causes 34% of truck electrical warranty claims. Our Shacman X5000 Cab Electrical Appliances eliminate this risk through traceable OEM sourcing and laser‑etched part numbers.
Standardizing your fleet on these components reduces SKU count: one PTO switch fits all X5000 PTO applications, and the same cab turnover switch works across X5000 model years 2019‑2026. Simplify your spare parts inventory.
Field data from 250 trucks shows that Shacman X5000 Cab Electrical Appliances achieve a mean time between failures (MTBF) of over 8,000 hours of operation, compared to 2,500 hours for aftermarket alternatives. This translates directly to lower downtime and higher asset utilization.
The Shacman X5000 Cab Electrical Appliances are designed for 24V trucks. However, the PTO switches and warning light switch will function on 12V with reduced LED brightness. The warning light is 24‑only; a voltage converter is needed for 12V systems.
No, each LED warning light has integrated constant‑current drivers. However, the Warning Light Switch DZ97189584740 should be used with a 10A inline fuse (not included).
Yes. The Warning Light Mounting Brackets (DZ95189581577 / DZ97189581577) are available individually. The LED warning light part DZ95189721375 is also sold separately, but the complete kit offers best pricing.
Torque to 12 ± 2 Nm for M6x16 class 8.8 bolts when used with flat washer Q401B06. Do not exceed 15 Nm to avoid thread stripping in aluminum components.
Global availability: warehouses in Europe, Middle East and Asia maintain stock of all listed part numbers. Average lead time 5‑7 days for emergency shipments.
Technical documentation: every Shacman X5000 Cab Electrical Appliances order includes a wiring diagram, torque specification card, and installation video QR code. Support documents are also downloadable via the catalog link above.
Quality guarantee: each switch and LED lamp is 100% function‑tested at final assembly. Electrical parameters are logged and traceable to batch number. Any failure within 12 months triggers immediate replacement at no cost.
All Shacman X5000 Cab Electrical Appliances are RoHS and REACH compliant. No hazardous substances such as cadmium, lead, or hexavalent chromium are present in switch contacts or LED soldering.
Packaging uses 80% recycled cardboard with water‑soluble inks. Plastic bags are replaced with biodegradable cellulose wrapping. This reduces carbon footprint per shipment by 24% compared to conventional packaging.
In summary, the Shacman X5000 Cab Electrical Appliances range delivers unmatched reliability for heavy‑duty operators. Choosing genuine Shacman X5000 Cab Electrical Appliances means choosing safety, OEM fit and long service life. Every Shacman X5000 Cab Electrical Appliances component has passed exhaustive vibration, thermal and EMC testing.
Whether you maintain a single X5000 truck or a nationwide fleet, the Shacman X5000 Cab Electrical Appliances kit simplifies procurement and installation. Upgrade your electrical system with Shacman X5000 Cab Electrical Appliances and experience trouble‑free operation for thousands of hours on the road.
All specifications are current as of the latest Shacman X5000 revision. Part numbers and dimensions are subject to continuous improvement. For bulk quotations, use the Get Quotation button above. Technical drawings available in the Download Catalog link.
